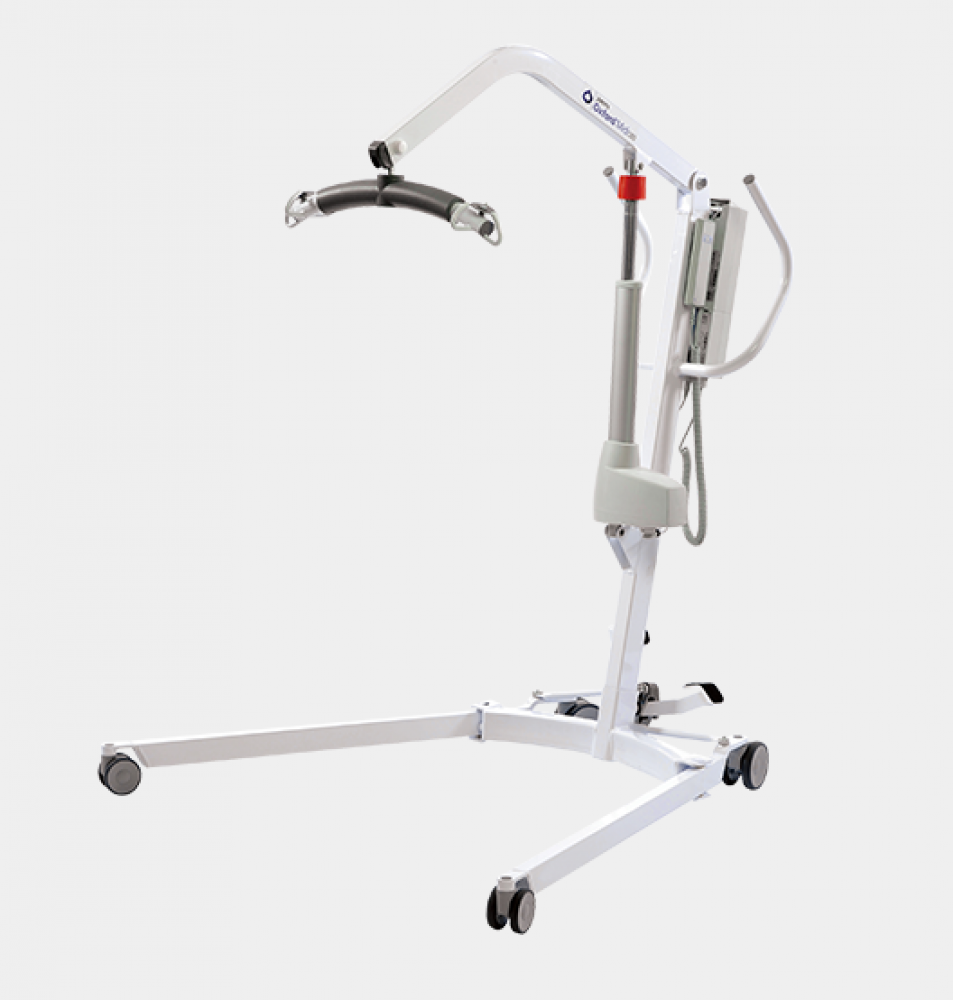

OXFORD MIDI LIFTING HOIST
Mid-Size Lifting Hoist
Code: HF2029

Details

VERSATILE WITH OUTSTANDING PERFORMANCE

The Oxford® Midi 180 has become the ‘gold standard’ in home care, offering surprising performance for a hoist of its size. The Midi is the perfect solution for both community and nursing environments, whilst being sympathetic to the space constraints it might encounter.

Smart Monitor diagnostic and service controls as standard
Electric leg spread
High-grade Tente® castors for easy manoeuvrability
Choice of three spreader bar sizes
Detachable battery pack and desktop charger
Optional Class III digital weigh-scale.

Specifications

Safe working load 180kg / 27st / 397lbs
SmartTM Monitor diagnostic and service controls as standard Length 1225 mm
Maximum Overall Height 1840 mm
Minimum Overall Height 1240 mm
Maximum Spreader Bar Height 1660 mm
Minimum Spreader Bar Height 525 mm
Spreader Bar Height at Maximum Reach: 1060 mm
Spreader Bar Reach at Maximum Height: 420 mm
Spreader Bar Reach at Minimum Height: 440 mm
Maximum Reach: 656 mm
Turning radius 1235 mm
Legs Open - External Width 1170 mm
Legs Open - Internal Width 1070 mm
Legs Closed - External Width 600 mm
Legs Closed - Internal Width 540 mm
Overall Height of Legs 100 mm
Ground Clearance 25 mm
Front Twin Castors 75 mm
Rear Braked Castors 100 mm
Mast and Boom Assembly 20.5 kg
Base Assembly 11.5 kg
Total Weight 32 kg
